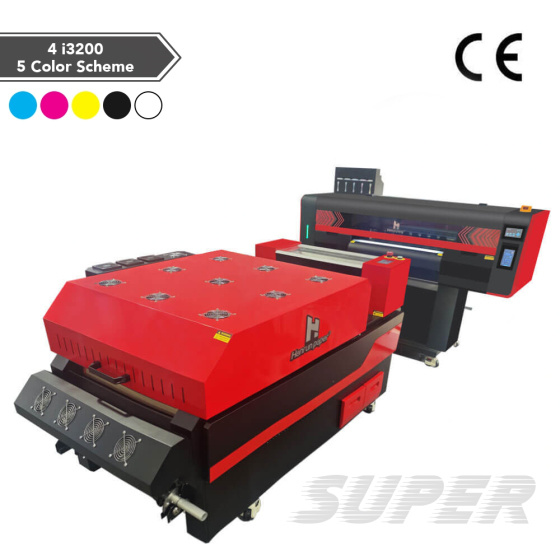

Super A-604 DTF Printer
Discover unparalleled efficiency and innovation with our Super A-604 DTF Printer, meticulously engineered to redefine your printing experience. Super A-604 DTF Printer is equipped with advanced features including a CCD Camera for automated nozzle detection and cleaning, our printer ensures optimal efficiency and minimizes scrap rates. Experience seamless operation with its installation-free design and intuitive touchscreen interface. Simplify waste management with the built-in ink storage system, and achieve precision printing with the tension unwinding system. Maximize performance and space efficiency with the built-in ink shaking system. Our DTF Printer offers exceptional results every time. Experience optimal efficiency and minimal scrap rates across a wide range of applications including textiles, garments, signage, custom apparel, promotional items, and more.
Function Upgrade
CCD Camera
The CCD function can automatically detect the current status of the nozzle, eliminating the need to manually detect the nozzle status. When the nozzle is disconnected, it is automatically cleaned to improve efficiency and further reduce the scrap rate.
Installation Free
This machine does not require complicated
installation operations and can be used directly
after plugging in the power supply.
Touch Screen
All functions can be realized on the two screens in front of you, such as electric paper pressing, ink shortage alarm, lighting, front guide heating, automatic moisturizing, etc., making the machine more intelligent.
Automatic moisturizing
When the machine is not used for a long time after work or traveling far away, the automatic moisturizing function no longer requires the manual operation of squeezing in moisturizing liquid. Just click on automatic moisturizing on the machine, and the machine will automatically extract moisturizing liquid into the nozzle.
Mirror Inspection For Printhead
The mirror inspection area is designated to include angled mirror inspection zones, facilitating observation of nozzle conditions, as well as conducting cleaning and maintenance tasks.
Security Protection System
When the machine encounters an obstacle during printing, the nozzle will stop working immediately. The machine will light up with a red light to remind you of the unsafe status.
Tension Unwinding System
The design and adjustment of the tension unwinding system are crucial to the normal operation and printing results of the printer. Especially for applications such as high-speed printing and large-format printing, tension control is indispensable.
Waste Ink Storage System
The user-friendly design makes it easier to collect waste ink and discharge waste, simplifying the process of daily maintenance of the machine.
Specification
| Super A-604 DTF Printer | |
| Model | Super A-604 DTF Printer |
| Printhead | 4 EPSON i3200 |
| Print Resolution/Speed | 4pass(360*2400dpi): 33m2/h 6pass(360*3600dpi): 22m2/h 8pass(720*2400dpi): 16m2/h |
| Ink | DTF pigment ink |
| Three heating sections | Pre-heater; Printing bed heater; Rear heater |
| Printing media width | DTF film 600mm |
| RIP software | Photoprint/Maintop/CADlink |
| Language | English |
| Power | 2.8kw (generally works at 800w) |
| Printer size | 1827(L)*795(W)*1315(H)mm |
| Packing size | 1900(L)*933(W)*1332(H)mm 320kg |
| Working environment | Temperature: 20-30℃, Humidity:45%-70% |
| Functional item | Shake powder control/Powder amount control/Temperature control |
| Voltage | AC110V / 220V 50HZ/60HZ |
Features
# Improve production efficiency
# i3200 printhead installation-free
# Nozzle compensation ensures perfect work
# Centralized joint control of multiple printers
# Convenient built-in air purification unit
# Stable and continuous mass production
Application
# Washing labels for garments
# Fashion clothes(most kinds of garments and no need to distinguish colors)
# Personalized customization
